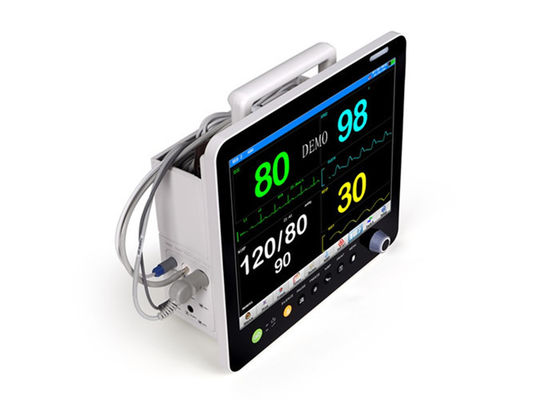

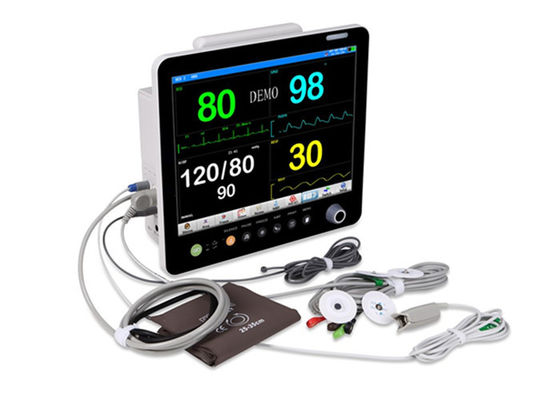

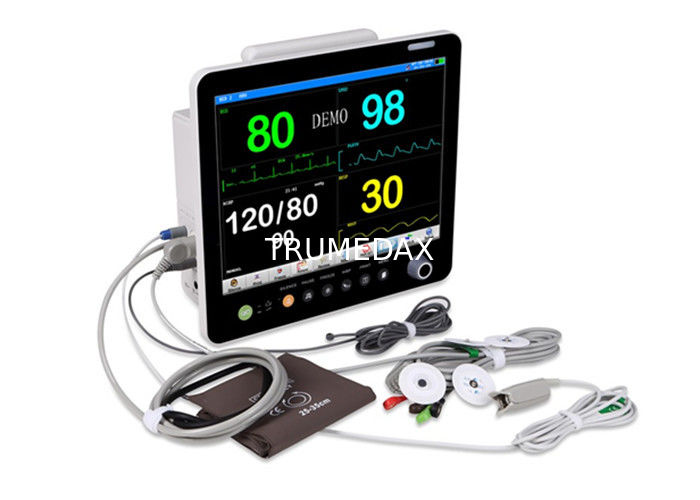

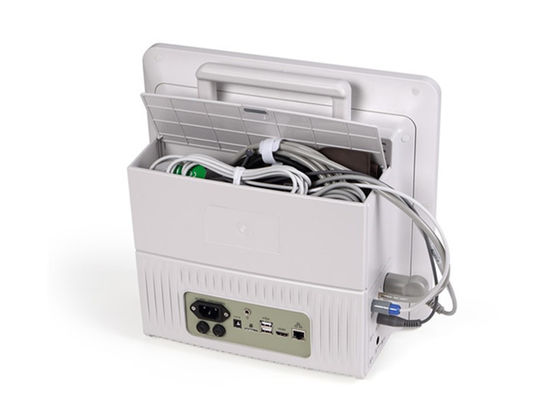

Professional 15 Inch Patient Monitor Machine 8 Channel Waveforms Display

Portable Patient Monitor 15 Inch SPO2 ECG NIBP TEMP PR RESP ASSY BOX



NAME:



P/N:

T15P



INTRODUCTION:

1. 13 Type Arrhythmic Analysis, Multi_Lead ECG Waveforms Display in Phase, Real time S_T segment analysis, pacemaker detection Drug calculation and titratiotable
2. Efficient resistance to interference of defibrillator and electrosurgical cautery
3. SPO2 can testing for 0.1% Weak
4. RA-LL impedance Respiration
7. Bed to Bed view Display
8. Networking capacity
9. UP to 4 hours working capacity of built_in rechargeable battery
10. 15" high resolution color TFT LCD display
11. Large volume of tabular and graphic trends information storage and easy to recall
12. Anti-ESU, anti- defibrillator



SPECIFICATIONS:

ECG Lead mode: 3 Leads or 5 Leads Lead selection: I,II,III,AVR,AVL,AVF,V Gain:X0.25,X0.5,X1,X2,Auto Heart Rate:15-300BPM(Adult) 15-350BPM(Neonatal) Resolution:1 BPM Accuracy:±1% ST measurement Range: -2.0+2.0mV Pacemaker: Yes ARR detecting: Yes Electrode offset potential: ±300mV Leakage current: <10uA   NIBP Work mode: Manual, Auto, Continuous Measure Range: Adult: SYS: 40-270mmHg DIA: 10-215mmHg MEAN:20-235mmHg Pediatric: SYS:40-200mmHg DIA: 10-150mmHg MEAN:20-165mmHg Neonatal: SYS:40-135mmHg DIA:10-100mmHg MEAN:20-110mmHg Resolution:1mmHg Measurement Type :SYS,DIA,MEAN

SpO2 Measure Range:0-100% Resolution:1% Accuracy:2%(70-100%),,0-69%,upspecified Pulse Rate:20-300BPM Resolution:1BPM Accuracy:±2BPM   RESP Measure Range:0-150RPM Resolution:1BrPM Accuracy:±2%   TEMP*2 Measure Range:0-50C Resolution:0.1C Accuracy:±0.1C   IBP: Measure range: ART:0-300 mmHg PA:-6-120 mmHg CVP/RAP/LAP/ICP:-10-40 mmHg P1/P2:-10-300 mmHg Accuracy: ±2% or ±1 mmHg   Environment: Operating Temperature: 59°to 95°F(15°to 35°C) Storage Temperature: 23°to 122°F(-5°to 50°C) Operating Humidity: 15℅ to 90℅,non-condensing































































STANDARD CONFIGURATION:

WARRANTY:

One years after receiving item.



PICTURES:
