M1196A Philips Silicone Wrap Spo2 Probe Sensor 8 Pin Connector Good Flexibility

Product Details:

Place of Origin:	China
Brand Name:	RONSEDA
Certification:	CE and ISO 13485
Model Number:	RSD S0174-22

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Usd 25 / Set
Packaging Details:	Box
Delivery Time:	5-10 Working Days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 pc / Month

Contact Now

Detailed Product Description

Type:	SpO2 Sensor Or SpO2 Probe	Application:	Patient Monitor Or Pulse Oximeter
Compatible:	PHILIPS	Connector:	8 Pin
Length:	3 Meter	Cable Material:	Medical Grade TPU
Color:	Gray Or Blue	Service:	OEM Or ODM
High Light:	pulse oximeter adhesive sensor , reusable spo2 sensor

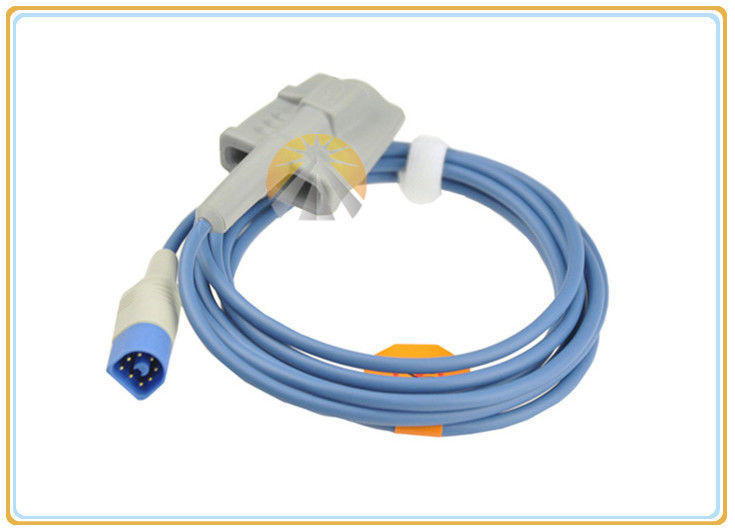

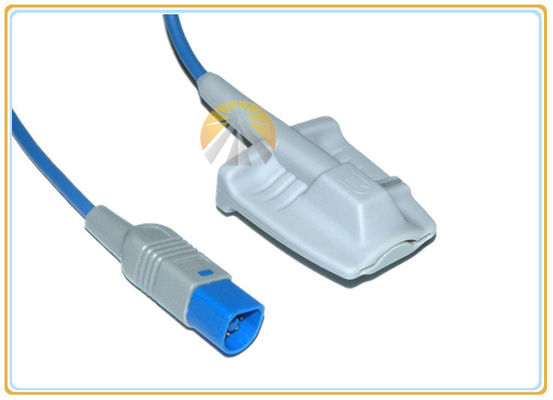

M1196A Philips 8 Pin Silicone Wrap SpO2 Sensor

DESCRIPTION:

It works with the following patient monitors:Philips: C1, C3, M3, M4, MP20, MP30, MP40, MP50, MP60, MP70, MP80, MP90, VM4,VM6, VM8, HP Viridia 24C, Philips Heartstart defibrillator and IntelliVue; Goldway G40; Solaris NT2A, NT2C.

P/N:
RSD S0174-22

FEATURES:

1. Materials of connector and cable comply with UL and Rohs standard
2. Superior flexibility and durability,Aluminum foils shielding

3. OEM/ODM available,customizable and drawings are accepted
4. Brand new, great ratio,good looking
5. Easy to clean and repair
6. Technology process: cutting,welding,molding,assembly and testing
7. Quality 100% assured,accurate measurement and fast response

SPECIFICATIONS:

LEDS	Red	660nm normal
	Infrared	880/905/940nm normal
Test Range	Oxygen Saturation(%SpO2)	0% to 100%
	Pulse Rate(bpm)	30 to 245
Accuracy	SpO2	±2%(90%-100%)
		±3%(70%-89%)
		unspecified(0-69%)
	Pulse Rate	±1 bpm(30-59bpm)
		±2 bpm(60-149bmp)
		±3 bpm(150-245bmp)
Storage and Transport Environment	-10°C~+40°C
Operating Temperature	+5°C~+40°C
Operating/Storage/Transportation humidity	0%-80%
Hyperbaric pressure	86kPa-106 kPa
