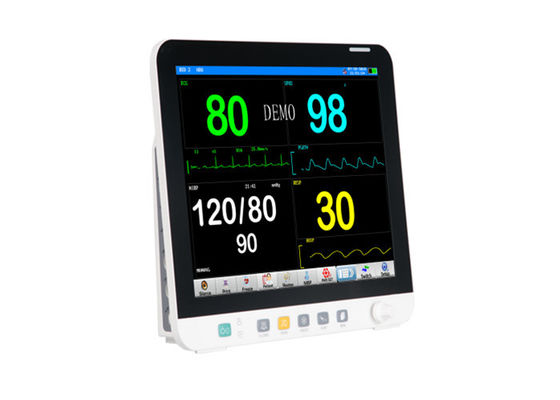

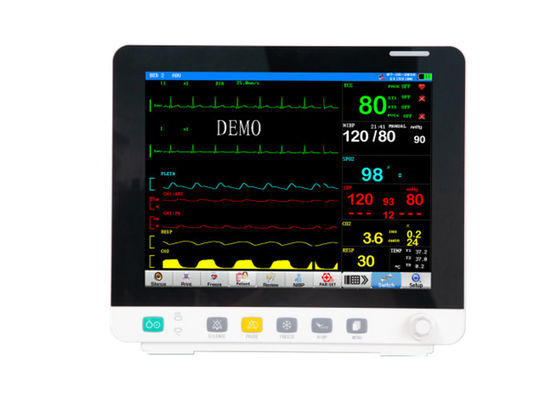

ICU Patient Monitor Machine 15 Inch Multi Separated Parameter Board Central Monitoring System

Product Details:

Place of Origin:	China
Brand Name:	TRUMEDAX
Certification:	CE and ISO
Model Number:	S15

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Usd 950 / Set
Packaging Details:	Box
Delivery Time:	5-10 Working Days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 Set / Month

Contact Now

Detailed Product Description

Parameter:	SPO2,ECG,NIBP,TEMP,PR,RESP	Screen:	15 Inch TFT Color Screen
Weight:	3 KG	Dimension:	15X42X32 CM
Standard:	SpO2 Sensor,ECG Cable,Temperature Probe,NIBP Cuff,NIBP Hose,Power Cable	Optional:	Touch Screen,EtCO2,IBP,Printer
High Light:	vital sign monitoring equipment , hospital patient monitoring equipment

Portable 15 Inch Multi Separated Parameter Board Patient Monitor ICU Vital Sign Monitor

P/N:
S15

INTRODUCTION:
Patient Monitor is used in hospital to monitor vital sign of patient, like ECG, PR, Spo2, Resp.,Temp. NIBP and so on. It can be used in normal patient room, ICU, NICU.
new high-precision modules, new digital oxygen technology
15" color TFT display, up to 12 waveforms
Arrhythmia analysis, ST calculation, Pace analysis
Various interfaces: A single guide, standard, large font, all leads
Anti-ESU, anti- defibrillator
Patient info input management function
Multi-lead ECG waveforms display in phase
1-7 level audio/visual alarming
Large volume of tabular and graphic trends information storage and easy to recall
Suitable for adult, pediatric and neonatal patient
Built-in recorder and battery

SPECIFICATION:

play	15”color TFT Rolling and refreshing waveform display Resolution: 800×600 Multi display selectable including: Standard display Large-font display Trend coexist display OxyCRG dynamic view display 7 full ECG waveforms display Bed-to-bed view display(optional)	Recorder	Build-in, thermal array Plethysmogram caveform:2 /3 channels Record mode: manual, on alarm, time-defined Recording width: 50mm Printing speed: 50mm/s
Trace	9 waveforms (7 ECG, 1 SPO2 and 1 RESP) Sweep speed:6.25mm/s, 12.5mm/s,25mm/s,50mm/s	Indicator	Power/battery indicator light QRS beep and alarm sound
Battery	Rechargeable lithium battery, 12v/4AH Max.24 hour for charging, 2 hours for continue working	Recording type	NIBP: 1000 groups Alarm: 200 groups SD card external storage(optional)
Storage	Connected to central monitoring system TCP/IP netting platform Wifi connector (optional)	Alarm	User-adjustable High, Medium and Low limits 3-level Audible and visual alarm
Trend	Parameter graphic and tabular trends: 5s/piece, 8 hours; 1min/piece,168 hours(24hour×7days) 5min/piece, 1000 hours	Networking	Frozen waveform record NIBP recall record Trend table record Alarm record Fixed -time record
