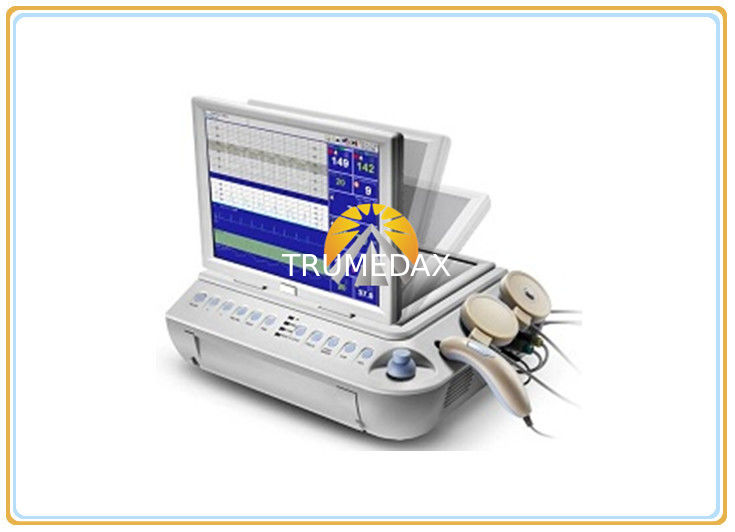

Portable Fetal Patient Monitor Machine RSD Apolo B Series FHR TOCO Parameter

Product Details:

Place of Origin:	China
Brand Name:	RONSEDA
Certification:	CE and ISO
Model Number:	RSD Apolo B Series

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Usd 3000 / Set
Packaging Details:	Box
Delivery Time:	5-10 Working Days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 Set / Month

Contact Now

Detailed Product Description

Parameter:	FHR TOCO	Screen:	12.4 Inch Screen
Weight:	3.6 KG	Dimension:	15X42X32 CM
Standard:	FHR TOCO	Optional:	Touch Screen,NIBP,Printer
High Light:	medical vital signs monitor , hospital patient monitoring equipment

12.1 Inch Portable Fetal Monitor FHR TOCO SPO2 PR Transducer RSD Apolo B Series

NAME:

Fetal Monitor is equipped with unique 12-Crystal Ultrasound Transducers. This capability helps to ensure superior signal quality by maintaining a uniform beam pattern throughout its depth of penetration. 12-Crystal Ultrasound Transducer achieve a wider focal region for more uniform coverage at greater depth than conventional 9-Crystal Transducers. 12-Crystal Ultrasound design helps ensure minimal repositioning, even with challenging patients of varying sizes.

High-tech fetal monitors, offer a reliable, high-performance solution for fetal monitoring needs in the clinic and hospital, from pre-natal check-ups to antepartum monitoring of high-risk pregnancies. Apolo K Series is your best partner from antepartum through intrapartum till delivery.

P/N:

RSD Apolo B Series

FEATURES:

●Newly advanced A8 main board with Linux OS, more stable and safe, the calculating speed is 4 times faster than traditional products

●Foldable 12.1 inches high-brightness LED display, touch screen (optional)

●12-Crystal doppler transducer for accurate detection (waterproof for option)

●Supporting operation with keyboard and mouse (optional)

●Large capacity storage space, 8640 hours memory for fetal traces

●Support medical history search by patient ID, name and mobile number

●FHR signal quality indicator helps optimize the probe position

●On-screen scrolling for viewing stored fetal traces

●Configurable audible and flashing fetal heart rate alarms

●Cross-Channel Verification (CCV) detects coincidence between all fetal and maternal heart/ pulse rates

●Supporting Multi-display mode to meet different clinical requirement, including Fetal-parameter interface, Maternal-parameter interface, Fetal/Maternal-parameter interface, big font, alarm review, ECG review, trend table, trend graph and OxyCRG display

●NIBP self-test mode: including overpressure test, static pressure test and air leakage test.

●Built-in high speed thermal printer, printing width can be selectable to 112mm,150mm

●Internal rechargeable Li-ion battery or AC power from external power supply

●Optional build-in wireless network card, supporting wired or wireless connection to the central monitoring station

●Optional Fischer Non-Stress Test (NST) report software allows interpretation of fetal heart rate and TOCO traces, and generates a printed report automatically for a reassuring NST

●Support HL7 (Health Level Seven, optional)

STANDARD:

●Apolo B1:

Single FHR+ TOCO+ AFM/MFM+ Paper(112 mm)+ Lithium Battery

●Apolo B2:

Single FHR+Dual FHR+ TOCO+ AFM/MFM+Singal Overlap Alarm+ Paper(150 mm)+ Lithium Battery

●Apolo B3:

Single FHR+TOCO+ AFM/MFM+Singal Overlap Alarm+Maternal Parameters (ECG,NIBP,SpO2,PR,RESP,TEMP)+ Paper(112 mm)+ Lithium Battery

●Apolo B4:

Single FHR+Dual FHR+TOCO+ AFM/MFM+Singal Overlap Alarm+Maternal Parameters (ECG,NIBP,SpO2,PR,RESP,TEMP)+ Paper(112 mm)+ Lithium Battery

OPTIONAL:

●Touch Screen/key Board/Mouse/Central Monitor System
