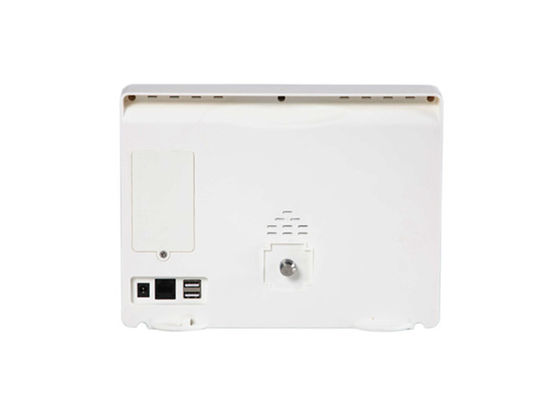

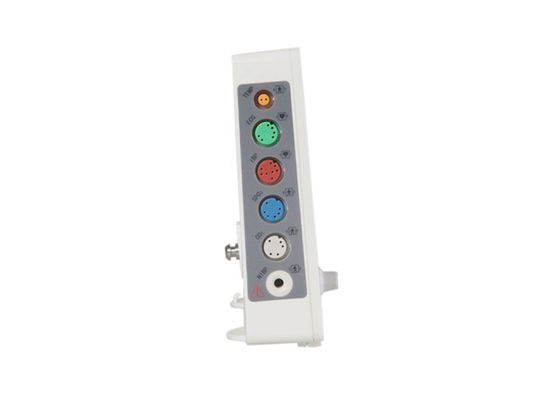

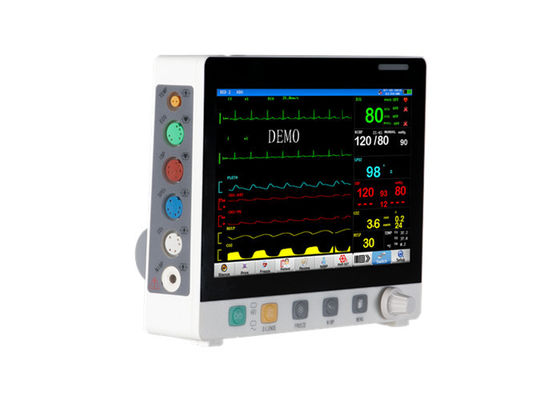

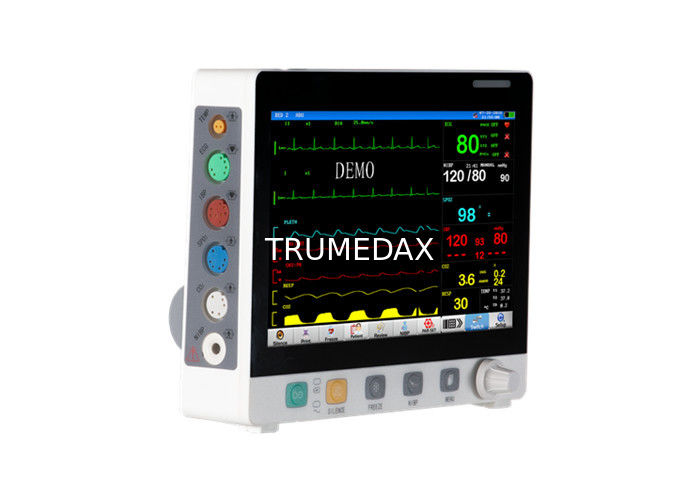

10 Inch Portable Patient Monitor Multi Parameter Medical Vital Signs Monitor

Product Details:

Place of Origin:	China
Brand Name:	TRUMEDAX
Certification:	CE and ISO
Model Number:	S10

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Usd 750 / Set
Packaging Details:	Box
Delivery Time:	5-10 Working Days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 Set / Month

Contact Now

Detailed Product Description

Parameter:	SPO2,ECG,NIBP,TEMP,PR,RESP	Screen:	10 Inch TFT Color Screen
Weight:	3 KG	Dimension:	15X42X32 CM
Standard:	SpO2 Sensor,ECG Cable,Temperature Probe,NIBP Cuff,NIBP Hose,Power Cable	Optional:	Touch Screen,EtCO2,IBP,Printer
High Light:	medical vital signs monitor , vital sign monitoring equipment

Portable 10 Inch Multi Separated Parameter Board Patient Monitor

10 Inch Portable Patient Monitor Multi Parameter Medical Vital Signs Monitor

P/N:

S10

INTRODUCTION:

Patient Monitor is used in hospital to monitor vital sign of patient, like ECG, PR, Spo2, Resp.,Temp. NIBP and so on. It can be used in normal patient room, ICU, NICU.

FEATURES:

1. Spo2 Pitch Tone Variation;
2. Hemodynamic Calculations;
3. Waveforms are user selectable;
4. Standby mode for energy saving and suspend monitoring;
5. Separated parameter board: main, ECG, SPO2, NIBP board are independent;
6. Display:10" color TFT screen, high resolution: 800×600 dpi;
7. Time delay:Time delay switch-off function to save data when monitor turn off suddenly;
8. Fanless: Use special fanless cooling technology in the device to provide users quiet environment;
9. Language: Built-in 8 language for choose (English, Chinese, Turkish, Spanish, French, Russian, German, Italian);
10. Advance patient Manage: gender, full name, ID no., room no., bed no., weight,height, blood type, paced or not, remakes

SPECIFICATION:

play	10”color TFT Rolling and refreshing waveform display Resolution: 800×600 Multi display selectable including: Standard display Large-font display Trend coexist display OxyCRG dynamic view display 7 full ECG waveforms display Bed-to-bed view display(optional)	Recorder	Build-in, thermal array Plethysmogram caveform:2 /3 channels Record mode: manual, on alarm, time-defined Recording width: 50mm Printing speed: 50mm/s
Trace	9 waveforms (7 ECG, 1 SPO2 and 1 RESP) Sweep speed:6.25mm/s, 12.5mm/s,25mm/s,50mm/s	Indicator	Power/battery indicator light QRS beep and alarm sound
Battery	Rechargeable lithium battery, 12v/4AH Max.24 hour for charging, 2 hours for continue working	Recording type	NIBP: 1000 groups Alarm: 200 groups SD card external storage(optional)
Storage	Connected to central monitoring system TCP/IP netting platform Wifi connector (optional)	Alarm	User-adjustable High, Medium and Low limits 3-level Audible and visual alarm
Trend	Parameter graphic and tabular trends: 5s/piece, 8 hours; 1min/piece,168 hours(24hour×7days) 5min/piece, 1000 hours	Networking	Frozen waveform record NIBP recall record Trend table record Alarm record Fixed -time record
