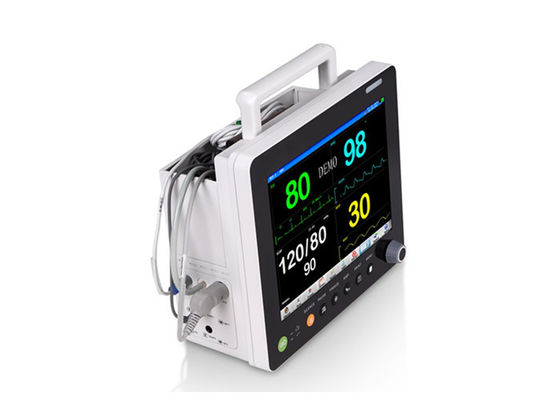

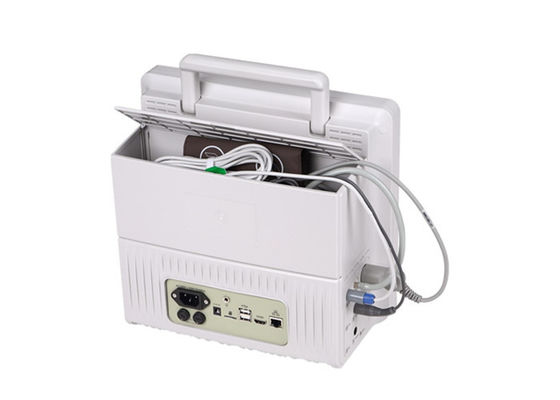

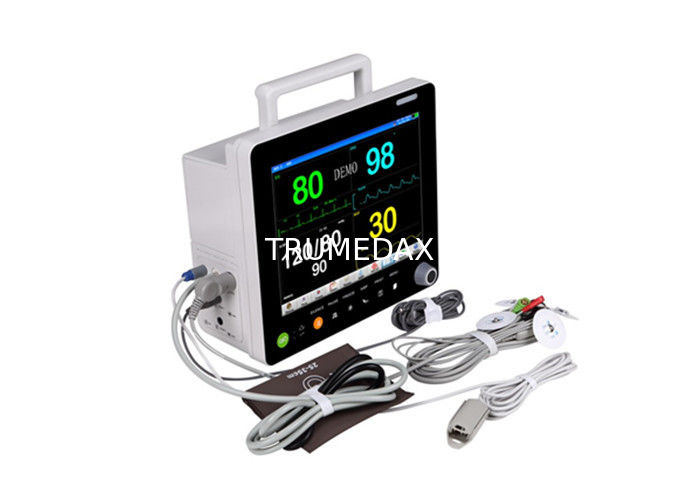

Hospital Patient Monitor Machine With Cabinet 12.1 Inch Display

Multi-Parameter Patient Monitor 12.1 Inch with Accessory Cabinet





NAME:

12.1 Inch Portable Multi-Parameter Patient Monitor



FEATURE:



P/N:

T12P



INTRODUCTION:

Ergonomic design, portable, convenient for use.

12.1" TFT display, configurable up to 8 waveforms, enables maximum data visibility for the most critical parameters.

Unique digital SPO2 technology can work accurate during motion and low perfusion.

Anti AC & high-frequency electrosurgical & defibrillator’s interference.

Rich screen layout, standard, large font, trend graph, OxyCRG, ECG full lead and others.

Strong data storage: 720 hours trends, 10000 group NIBP, 1024 alarms events.

ST analysis, arrhythmia analysis, pacemaker analysis, drug analysis and calculation.

Audible & visual alarm available, adjustable.

Patient information management function.

Powerful software function to support use in NICU, ICU, OR, CCU or normal patient room

Optional software upgrading based on USB.

Wired/wireless networking with central monitoring system, up to 64 beds in one group.

Built-in 3 trace thermal recorder for printing real-time and historical data.

Multi-language i.e. English, Spanish, Turkish.

Super long life rechargeable Lithium battery upto 4 hours of working time.

Suitable for adult, pediatrics and neonate patients.



SPECIFICATIONS:

ECG Lead mode: 3 Leads or 5 Leads Lead selection: I,II,III,AVR,AVL,AVF,V Gain:X0.25,X0.5,X1,X2,Auto Heart Rate:15-300BPM(Adult) 15-350BPM(Neonatal) Resolution:1 BPM Accuracy:±1% ST measurement Range: -2.0+2.0mV Pacemaker: Yes ARR detecting: Yes Electrode offset potential: ±300mV Leakage current: <10uA   NIBP Work mode: Manual, Auto, Continuous Measure Range: Adult: SYS: 40-270mmHg DIA: 10-215mmHg MEAN:20-235mmHg Pediatric: SYS:40-200mmHg DIA: 10-150mmHg MEAN:20-165mmHg Neonatal: SYS:40-135mmHg DIA:10-100mmHg MEAN:20-110mmHg Resolution:1mmHg Measurement Type :SYS,DIA,MEAN

SpO2 Measure Range:0-100% Resolution:1% Accuracy:2%(70-100%),,0-69%,upspecified Pulse Rate:20-300BPM Resolution:1BPM Accuracy:±2BPM   RESP Measure Range:0-150RPM Resolution:1BrPM Accuracy:±2%   TEMP*2 Measure Range:0-50C Resolution:0.1C Accuracy:±0.1C   IBP: Measure range: ART:0-300 mmHg PA:-6-120 mmHg CVP/RAP/LAP/ICP:-10-40 mmHg P1/P2:-10-300 mmHg Accuracy: ±2% or ±1 mmHg   Environment: Operating Temperature: 59°to 95°F(15°to 35°C) Storage Temperature: 23°to 122°F(-5°to 50°C) Operating Humidity: 15℅ to 90℅,non-condensing



















































































STANDARD CONFIGURATION:

WARRANTY:

One years after receiving item.
