| Place of Origin: | China |
| Brand Name: | TRUMEDAX |
| Certification: | CE and ISO |
| Model Number: | T8 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Usd 650 / Set |
| Packaging Details: | Box |
| Delivery Time: | 5-10 Working Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Set / Month |
| Parameter: | TEMP,PR,RESP,SPO2,ECG,NIBP | Screen: | 8 Inch TFT Color Screen |
|---|---|---|---|
| Weight: | 2.6 KG | Dimension: | 13X37X28 CM |
| Standard: | SpO2 Sensor,ECG Cable,Temperature Probe,NIBP Cuff,NIBP Hose,Power Cable | Optional: | Touch Screen,EtCO2,IBP,Printer |
| High Light: | vital sign monitoring equipment,hospital patient monitoring equipment |
||

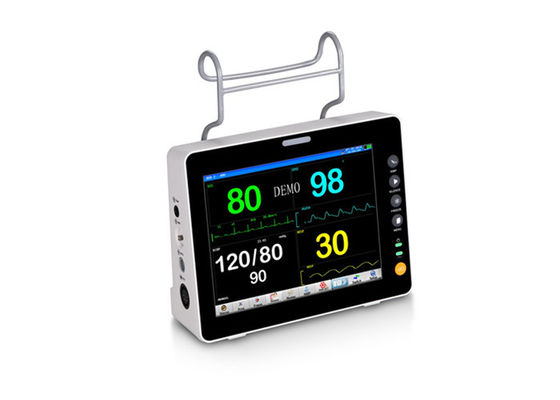

Multi-Parameter Patient Monitor Machine Patient Monitor 8 Inch
NAME:
Portable Multi-Parameter Patient Monitor 8 Inch
P/N:
T8
INTRODUCTION:
This equipment can monitor such parameters as ECG,RESP,SpO2,NIBP,and TEMP.
It integrates parameter measuring module, display and recorder in one device to form a compact and portable device. At the same time, its built-in replaceable battery provides convenience for patient moving.
| NIBP | Method: Oscillometry |
| Modes: Manual/Auto/Comtinuous | |
| Auto measure time: Adjustable | |
| Measurement range:10-270mmHg | |
| ECG | Lead mode:3-lead or 5-lead |
| Lead selection: I;II;III,avR; avF; v | |
| Heart rate range: Adult:15-300bpm | |
| Pediatric/Neonatal:15-300bpm | |
| ECG wavefrom:2 channals | |
| Accuracy: ±1bpm or ± 1%,which is qreater | |
| S-T seqment detection；measurement range:-2.0mv~+2.0mv | |
| Alam:Yes,audible and visual alarm,alarm events review | |
| SPO2 | Measurement range:0-100% |
| Accuracy:70-100%.±2%,0-69%,upspecified | |
| Auto measure time: Adjustable | |
| Pulse Rate | Range:20-254bpm |
| Accuracy:±3bpm | |
| Respiration | Method:RA-LL impedance |
| Range:Adult 0-120rpm;pediatric/neonatal:0-150rpm | |
| Apnca alam:Yes | |
| Temperature | Range:0-500 |
| Accuracy:±0.10 | |
| Channal: Dual-channel | |

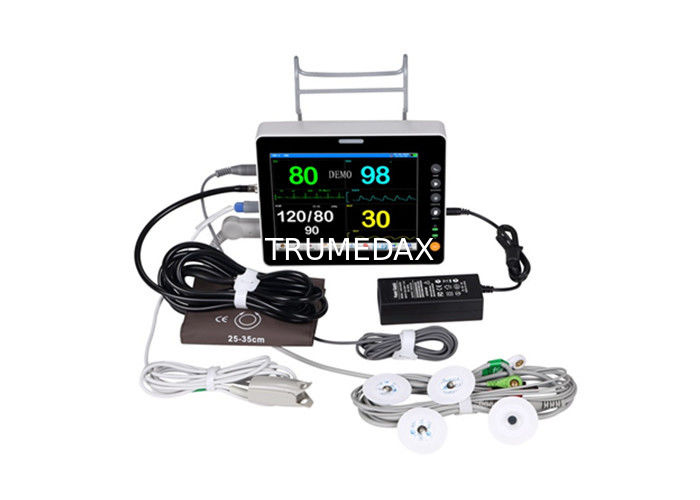

| Main unit | ECG cable |
| Spo2 probe | |
| TEM Probe | |
| NIBP Tube | |
| Adult cuff | |
| Power cable | |
| Battery | |
| Uesr manual |
FEATURES:
8" color TFT LCD screen, resolution: 800*600
5 kinds of interfaces: Standard/Big font/6-lead ECG/Trend gragh/OxyCRG
Maximum 8-channel waveforms display, the waveform color can be defined by user (7 colors)
96-hour storage and review of trend graphic gram and table, 400 groups NIBP data, 1800 alarm events
ST and arrhythmia analysis, pacemaker analysis, drug dose calculation
Anti-defibrillation design
NIBP over pressure protection
Plug-in rechargeable battery, AC/DC available
Support wire or wireless network
WARRANTY:
One years after receiving item.
