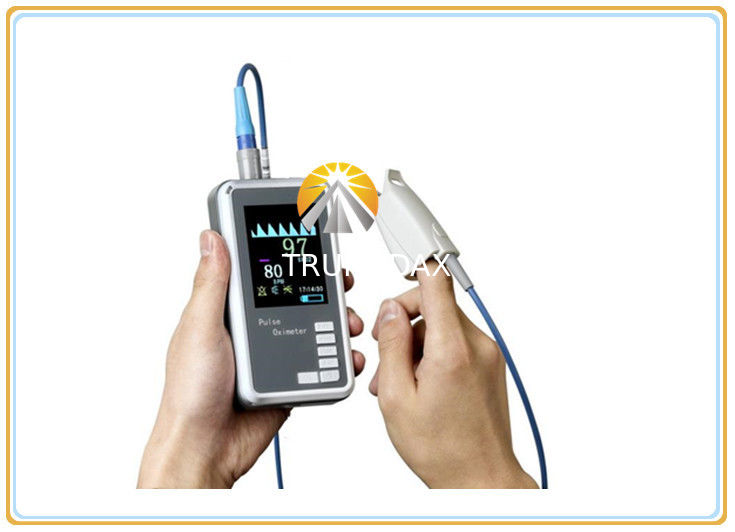

75G Weight Oxygen And Heart Rate Finger Monitor , Most Accurate Finger Pulse Oximeter

Product Details:

Place of Origin:	China
Brand Name:	RONSEDA
Certification:	CE and ISO
Model Number:	RSD 7700

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Usd 30 / Set
Packaging Details:	Box
Delivery Time:	5-10 Working Days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 Set / Month

Contact Now

Detailed Product Description

Parameter:	SPO2,PR	Weight:	75G
Dimension:	10X20X15 CM	Standard:	Pulse Oximeter
Display:	2.8 Inch Color TFT LCD	Output::	D.C. 5V
High Light:	medical grade pulse oximeter , handheld pulse oximeter

Finger Pulse Oximeter SpO2 Sensor RSD 7700 Pulse Rate SpO2 Probe

NAME:

1. Two parameters:SPO2, and Pulse Rate

2. Spo2 waveform(PLETH),PR strength display

3. 2.8 inch color TFT LCD in real time display, displayable in big font and big screen

4. Long time monitoring and sleeping monitoring

5. Audio and visual alarm when parameters exceeded and sensor-off

6. Built-in rechargeable Li-ion battery, up to 15-hour running time

7. Battery capacity indicator. Automatic shutdown for power saving

P/N:

RSD 7700

INTRODUCTION:

1. General

Monitoring Parameters: SpO2,PR,PLETH,Pulse strength

Signal sockets:SpO2 socket,PR socket,USB socket(for AC power)

2. Display screen

Type: 240 × 320 dot matrix color TFT LCD screen

Display area: 43mm×58mm

3. Functions

PLETH: The oximeter can display PLETH waveform

Audio and visual alarm: The speaker sounds the alarm and the parameter’s measurement will become in red to flash on the screen. Also the same when sensor-off.

Prompting: Icons of battery capacity, pulse sound switch and alarm sound switch.

Power saving: The oximeter will automatic shut down to save power. The time is settable.

4. Power Requirements

AC power adaptor

Input: AC 100 V～240V, 50/60Hz, 5VA

Output: D.C. 5V

Internal battery

Type: D.C. 3.7V/3000mAH Li-ion rechargeable battery

Run Time: 15-hour continuous operation with a new, fully charged battery (environment temperature is 25℃)

Recharge time: 8 hours

5. Environment

Temperature
