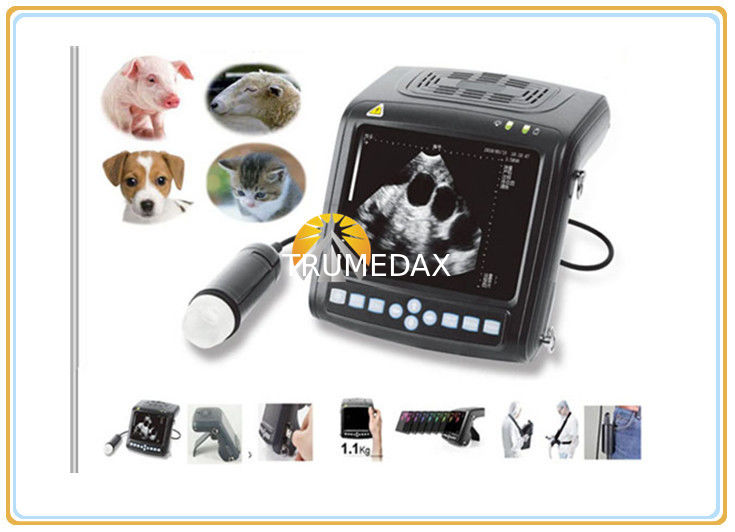

Wrist Top Veterinary Ultrasound Scan Machine 212*154*58mm Dimension

Home Products Ultrasound Scanner (Human)

Wrist Top Veterinary Ultrasound Scan Machine 21215458mm Dimension

Product Details:

Place of Origin:	China
Brand Name:	RONSEDA
Certification:	CE and ISO
Model Number:	RSD V560 ECO

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Usd 2500 / Set
Packaging Details:	Box
Delivery Time:	5-10 Working Days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 Set / Month

Contact Now

Detailed Product Description

Parameter:	Ultrasound	Screen:	5.7 Inch LCD Screen
Weight:	1.1 KG	Dimension:	21215458mm
Standard:	4.0/5.0/6.5/7.5MHz Transrectal Linear Probe	Color:	Grey
High Light:	portable diagnostic ultrasound machine , real time ultrasound machine

Digital Wrist-top Veterinary Ultrasound Scanner Veterinary Ultrasound Scanner

DESCRIPTION:

This is Highly cost-effective system, ideal for FARM ANIMAL veterinarian that wants and needs a good light-weight ultrasound scanner with a small-budget.

APPLICATION:

Equine -Reproduction, Tendon & Abdominal, Cardiac, Breeding,etc.

Farm Animal -Reproduction imaging on Bovine, Swine, Small ruminants and other large animals

Small animal -Criticare, Abdominal, Cardiac,etc

P/N:

RSD V560 ECO

BENIFETS:

1) 1.1kg ( 2.4 lbs)

2) Rechargeable Battery Life of 200 minutes

3) 5.7" LCD Display

4) 100 images built-in storage

5) Freeze image switch with free hand

6) 256 Frames Cine

7) USB Port for Flash Card Memory

8) 8 Stages of Magnification

9) Concise Menu for Operation

10) Good Brightness for Outdoor Scanning

11) Wrist Mount and Belt-hanger( for holding probes)Available

FUNCTION:

1. Body marks: 1.Swine 2.Canine 3.Feline 4.Ovine 5.Goat, total 28 kinds

2. Probe connector: 1pc, automatic identifying function

3. Receiving channel: >=16 digital beam former

4. Resolution: horizontal<=2mm, Vertical<=1mm

Dead Zone: <=5mm

5. Maxim scanning depth: >=190cm(according to the probe)

6. Geometric position accuracy: horizontal<=5%, Vertical<=5%

7. Scanning mode: B, 2B, 4B, B/M, M

Full field image with 8 lever adjustment(8 kinds Magnification)

8. Gain range: general gain continuously adjustment(0~127dB)

9. Dynamic range: 27~90dB, video adjustable

4 kinds angles /width adjustment

10. Gray: 256

11. Imaging technology: full digital beam forming, continuously dynamic adjustment focusing, Dynamic aperture

12. Image storage: 100 frames permanent storage

13. Cine loop: 256 frames

Intelligent TGC control: near-field and far-field adjustment

14. Imaging processing: pre-processing (continuous dynamic focusing, dynamic aperture, dynamic filtering), post-processing (4 gamma correction), correlation processing (4 levers), Left/right, positive/negative, vertical, horizontal flip and B/W conversion, edge enhancement (4), etc.

With the image enhance the depth and the local amplification

Wire switch realize the freezing and unfreezing

15. Frame rate: 30 frames/second

16. Measurement:

Normal measurement: distance, Perimeter, area (tracing method, ellipse method), volume, etc.

OB measurement: Swine, Canine,Feline, Ovine, Goat,etc.

Cardio measurements: depth, slope, heart rate, period

17. Report: OB report

18. Character Tags: name, age, hospital name, and automatically display the date, time, probe type, probe frequency, frame related to the number of the focus number, gain, dynamic range, etc

19. Battery: (2400MAh), Large capacity lithium Battery, more than 200 minutes work

20. Weight of main unit: 1.1Kg

21. Interface language: English

22. Puncture and guide functionality(Puncture and guide wire 2 can be calibrated, angel and position are adjustable)

23. Positioning line

24. High-speed USB-A port: Supporting Large-capacity disk and mouse U

High-speed USB-B port: Could transfer image('case report software V3.1'software)

25. Dual-mode output: PAL/NTSC

26. Print Output: Optional Video Recorder

27. Other Optional: Battery, battery Charger, apparatus, strap, bracket

WARRANTY:

One years after receiving item.
