Laptop Veterinary Ultrasound Scanner , Digital Livestock Ultrasound Equipment

Home Products Ultrasound Scanner (Human)

Laptop Veterinary Ultrasound Scanner , Digital Livestock Ultrasound Equipment

Product Details:

Place of Origin:	China
Brand Name:	RONSEDA
Certification:	CE and ISO
Model Number:	RSD V500

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Usd 3500 / Set
Packaging Details:	Box
Delivery Time:	5-10 Working Days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 Set / Month

Contact Now

Detailed Product Description

Parameter:	Ultrasound	Screen:	10.4 Inch Medical Color Display
Weight:	2.5 KG	Dimension:	29024550mm
Standard:	5.0/6.5/7.5Mhz Rectal Linear Probe	Color:	Grey
High Light:	portable diagnostic ultrasound machine , portable ultrasound scanner

10.4 Inch Display Digital Laptop Veterinary Ultrasound Scanner

APPLICATIONS:

* Equine -Reproduction, Tendon & Abdominal, Cardiac, Breeding,etc.

* Farm Animal -Reproduction imaging on Bovine, Swine, Small ruminants and other large animals

* Small animal -Criticare, Abdominal, Cardiac,etc

FEATURES:

1) Smaller-sized and very light for easy carry-on.

2) Rechargeable battery operated and AC power supply.

3) Backfat and lean percentage of swine calculated automatically
4) Psuedo Color System

5) Laptop style

6) Metalic suitcase

P/N:

RSD V500

CONFIGURATION:

1) Main unit 1pc

2) 5.0/6.5/7.5Mhz Rectal Linear Probe 1pc

3) Probe Connector 1pc

4) Pseudo Color System 1set

5) Internal Rechargeable Battery 2pc

6) Power Adapter 1pc

Operation Manual (English) 1pc

SPECIFICATION:

1. Probe: Electronic convex array, linear array, transrectal and microconvex probe.

2. Gray Scale:256

3. LCD Display: 10.4" crystal

4. Power Supply:100-240V 50-60Hz, 70VA

5. Rating 12V 3.0A

6. Main Unit Size: approx. 290*245*50mm(L*W*H)

FUNCTION:

1. Display Mode: B, B/B, 4B,B/M, M

2. M scanning speed: 1s,2s,3s,4s,5s,6s,7s,8s

3. Zoom: *0.8,*1.0,*1.2,*1.5,*1.6,*2.0,*2.4,*3.0

4. Depth Enhancement/ Pan Function

5. Local Zooming

6. Adjustment and display of near field,far field,total gain and dynamic range

7. Single-point, multi-point focusing

8. Frequency conversion

9. Angle Change

10. Frame Correlation

11. Gamma Correction, edge enhancement for image post-processing

12. Image Freeze/unfreeze

13. Vertical, horizontal flip and Black/white conversion

14. Psuedo Color Display

15. Patient information, image annotation and auto time display

16. Body Marks: 64

17. Measurement of distance, circumstance, area,volume,slope,heart rate, and cycle

18. Calculation of Bovine,Equine,Ovine,Canine and Feline;

19. Puncture Guide

20. Engery Saving

21. 100 frames image storage

22. 256 frames cine loop

23. OB Report

24. PAL-NTSC Conversion

25. Image Transfer to computer thru USB port.

OPTIONAL PROBES:

1) 2.0/2.5/3.5/5.0Mhz Convex Array Probe

2) 5.0/6.5/7.5/9.0Mhz Linear Array Probe

3) 5.0/6.5/7.5/9.0Mhz Micro-convex Array Probe

4) 4.0/5.0/6.5/7.5Mhz Rectal Linear Probe (without handle)

5) 4.0/5.0/6.5/7.5Mhz Rectal Linear Probe (with handle)

6) 2.0/2.5/4.0/5.0Mhz Rectal Convex Probe

PACKING:

Carton Size:440mm*220mm*430mm

Volume:0.042CBM

Net Weight:2.25kg/5lbs

Gross Weight:6.75kg/15lbs

Volumetric Weight:8.5kg/18.7lbs

WARRANTY:

One years after receiving item.

PICTURES:

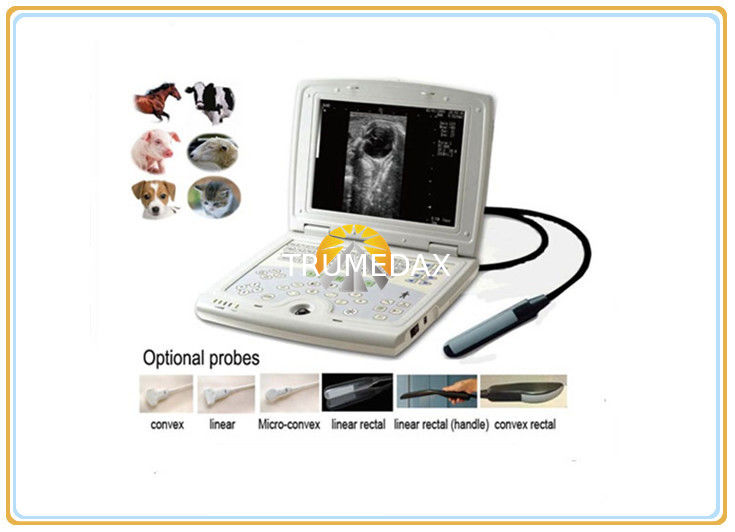

Laptop Veterinary Ultrasound Scanner , Digital Livestock Ultrasound Equipment
