7 Inch Touch Screen Portable 12 Lead Ecg Machine , Six Channel Medical Ecg Machine

Product Details:

Place of Origin:	China
Brand Name:	RONSEDA
Certification:	ISO
Model Number:	RSD 3306G

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Usd 950 / Set
Packaging Details:	Box
Delivery Time:	5-10 Working Days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 Set / Month

Contact Now

Detailed Product Description

Parameter:	ECG	Screen:	7 Inch 800 X 480 TFT Color LCD
Weight:	2.5 KG	Dimension:	35X30X20CM
Standard:	ECG Cable And Electrode	Color:	Grey
High Light:	electrocardiogram machine , medical ecg machine

7 inch 800 x 480 TFT color LCD Six Channel ECG Machine 12 Leads Waveforms

FEATURES:

1. Portable and delicate design, easy to operate

2. Accurate pulse pace identification function

3. High accuracy digital filter, automatic baseline adjustment

4. Working modes: Manual, Automatic, Arrythmia Analysis, Storage

5. 112mm, 6 channel format recording, excellent automatic interpretation

6. 800x480 graphic 7 inch touch color LCD to simultaneously display ECG information

7. 250 patient cases storage ( SD card storage is optional )

8. Detailed patient information record

9. Freeze function

10. Adapt to 110-230V,50/60Hz power supply. Built-in rechargeable Ni-MH battery continuously working for to 4 hours.

11. USB / Rs232 communication ports support USB storage, laser printer printing and PC ECG software ( Optional )

P/N:

RSD 3306G

DESCRIPTIONS:

1. Leads: standard 12 leads

2. Lead acquisition:12bit/1000Hz(synchronously 12 leads )

3. Work mode: Manual, Auto, R-R analysis

4. Filter

AC filter: 50Hz / 60Hz

EMG Filter: 25Hz / 45Hz

Anti-Drift Filter: 0.15Hz (Adaptive)

5. CMMR: ≥120dB (with AC filter)

6. Input circuit: floating; protection circuit against defibrillator effect

7. Input Impedance: ≥50MΩ

8. Input circuit current: ≤0.05μA

9. Patient current leakage: ＜10μA

10. Calibrating voltage: 1mV±2％

11. Voltage tolerance: ≥±500mV

12. Time constant: ≥3.2s

13. Frequency response: 0.05～160Hz(-3db)

14. Noise level: ＜15μVp-p

15. Inter-channel Interference: ≤0.5mm

16. Sensitivity: Auto,2.5, 5, 10, 20,40mm/mV(±3％)

17. Recording mode : 3ch, 3ch+, 3ch+++, 6ch

.Default Man.Mode is 3ch format

.Default Auto.Mode is 6ch+ format

18. Paper speed: 6.25,12.5, 25, 50mm/s(±3％)

19.Paper : 112 mm X 20 M roll paper

20. Input dynamic range:±10Vpp

21. Sensitivity valve: ≤20μV

22. Display: 800x480 graphic 7 inch color LCD

PACKING:

1. Main unit 1 set

2. Patient cable 1 set

3.Limb electrode 1 set (4pcs)

4. Chest electrodes 1 set (6pcs)

5. Grounding cable 1 pc

6. Paper axis 1 set

7. Thermal paper 1 roll

8. Fuse 2 pcs

9. 3-cord power cord 1 pc

10. AC Adaptor 1 pc

11. User manual 1 pc

OPTIONAL:

USB/RS232

WARRANTY:

One years after receiving item.

PICTURES:

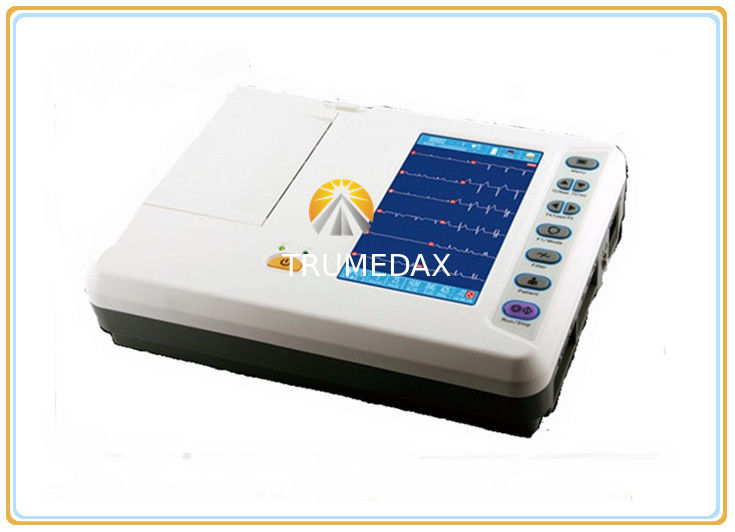

7 Inch Touch Screen Portable 12 Lead Ecg Machine , Six Channel Medical Ecg Machine

Tag:

ecg machine portable,

portable ecg monitor,

electrocardiography machine
