Single Channel Portable ECG Machine High Accuracy Digital Filter Small Size

Product Details:

Place of Origin:	China
Brand Name:	RONSEDA
Certification:	ISO
Model Number:	RSD 3301

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Usd 450 / Set
Packaging Details:	Box
Delivery Time:	5-10 Working Days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 Set / Month

Contact Now

Detailed Product Description

Parameter:	ECG	Screen:	3.5 Inch Color LCD
Weight:	2.5 KG	Dimension:	35X30X20CM
Standard:	ECG Cable And Electrode	Color:	Grey
High Light:	wireless ecg machine , medical ecg machine

Single Channel ECG Machine

FEATURES:

1. Compact and small size, easy and direct operation, portable

2. Accurate pulse pace identification function

3. High accuracy digital filter, auto baseline adjustment

4. Working modes: Manual, Automatic, Arrythmia Analysis

5. 50mm, single channel format recording, excellent automatic interpretation

6. 320x240 graphic 3.5 inch color LCD to simultaneously display 12ch waveforms

7. Adapt to 110-230V,50/60Hz power supply

8. Built-in rechargeable Ni-MH battery continuously

9. working for about 3 hours

P/N:

RSD 3301

DESCRIPTIONS:

1. Leads: standard 12 leads

2 .Patient current leakage: ＜10μA

3. Lead acquisition:12bit/1000Hz(synchronously 12 leads )

4. Calibrating voltage: 1mV±2％

5. Work mode: Manual, Auto, R-R analysis

6. Voltage tolerance: ≥±500mV

7. Time constant: ≥3.2s

8. Frequency response: 0.05～160Hz(-3db)

9. Input dynamic range:±10Vpp

10 .Sensitivity valve: ≤20μV

11. Sensitivity: Auto,2.5, 5, 10, 20,40mm/mV(±3％)

12. Inter-channel Interference: ≤0.5mm

13. Paper speed: 6.25,12.5, 25, 50mm/s(±3％)

14. Filter

AC filter: 50Hz / 60Hz

EMG Filter: 25Hz / 45Hz

Anti-Drift Filter: 0.15Hz (Adaptive)

15. CMMR: ≥100dB (with AC filter)

16. Input Impedance: ≥50MΩ

17. Input circuit current: ≤0.05μA

18. Noise level: ＜15μVp-p

19. Input circuit: floating; protection circuit against defibrillator effect

20. Display: 3.5 inch colour LCD

21. USB/RS232 is Optional

22. ECG waveform,100 patient save/replay

PACKING:

1. Main unit 1 set

2. Patient cable 1 set

3. Limb electrode 1 set (4pcs)

4. Chest electrodes 1 set (6pcs)

5. Grounding cable 1 pc

6. Paper axis 1 set

7. Thermal paper 1 roll

8. Fuse 2 pcs

9. 3-cord power cord 1 pc

10. AC Adaptor 1 pc

11. User manual 1 pc

OPTIONAL:

USB/RS232

WARRANTY:

One years after receiving item.

PICTURES:

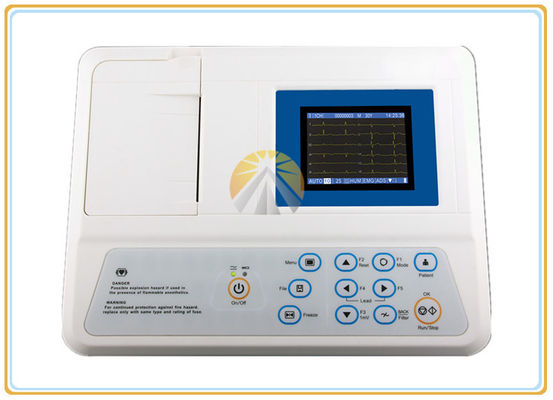

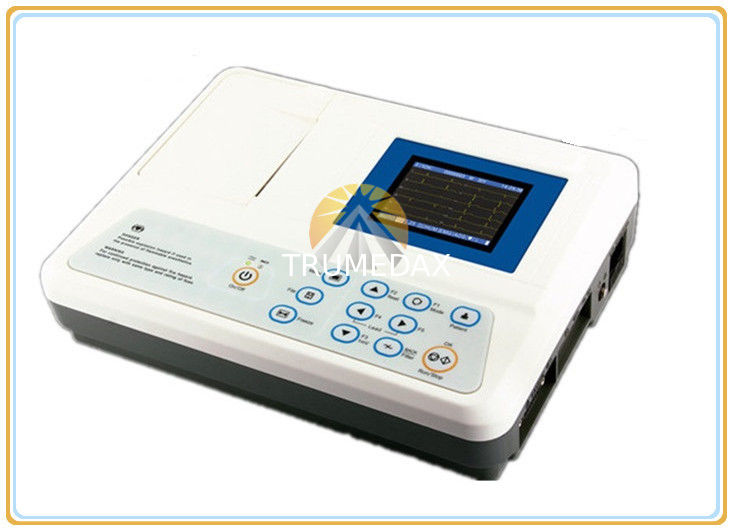

Single Channel Portable ECG Machine High Accuracy Digital Filter Small Size
