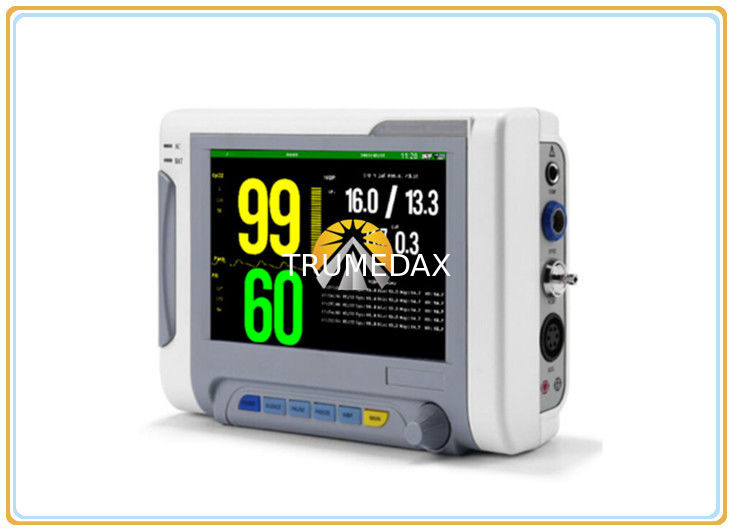

Adult / Pediatric Electronic Vital Signs Monitor , 7 Inch TFT Color Screen Nibp Monitor

Home Products Ultrasound Scanner (Animal)

Adult / Pediatric Electronic Vital Signs Monitor , 7 Inch TFT Color Screen Nibp Monitor

Product Details:

Place of Origin:	China
Brand Name:	RONSEDA
Certification:	CE and ISO
Model Number:	RSD 3000

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Usd 600 / Set
Packaging Details:	Box
Delivery Time:	5-10 Working Days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 Set / Month

Contact Now

Detailed Product Description

Parameter:	SpO2, ECG, NIBP,RESP,PR,TEMP	Screen:	7 Inch TFT Color Screen
Weight:	2 KG	Dimension:	15X42X32 CM
Standard:	Spo2,PR,RR,ETCO2,INCO2
High Light:	multipara patient monitor , ambulance patient monitor

7 Inch Color TFT Color Screen Portable Patient Monitor For Adult Pediatric Neonate

P/N:
RSD 3000

INTRODUCTION:
1. Spo2 Pitch Tone Variation;
2. Hemodynamic Calculations;
3. Waveforms are user selectable;
4. Standby mode for energy saving and suspend monitoring;
5. Separated parameter board: main, ECG, SPO2, NIBP board are independent;
6. Display: 7" color TFT screen, high resolution: 800×480 dpi;
7. Time delay:Time delay switch-off function to save data when monitor turn off suddenly;
8. Fanless: Use special fanless cooling technology in the device to provide users quiet environment;
9. Language: Built-in 8 language for choose (English, Chinese, Turkish, Spanish, French, Russian, German, Italian);
10. Advance patient Manage: gender, full name, ID no., room no., bed no., weight,height, blood type, paced or not, remakes

OPTIONAL:
Touch Screen, Printer, 3/12-lead ECG, 2/4-IBP,4-TEMP,2-SpO2, SpO2, ETCO2, Sun Tech NIBP, Wall mount, VGA, Wifi

SPECIFICATIONS:

Display	7”color TFT Rolling and refreshing waveform display Resolution: 800×480 Multi display selectable including: Standard display Large-font display Trend coexist display OxyCRG dynamic view display 7 full ECG waveforms display Bed-to-bed view display(optional)	Recorder	Build-in, thermal array Plethysmogram caveform:2 /3 channels Record mode: manual, on alarm, time-defined Recording width: 50mm Printing speed: 50mm/s
Trace	9 waveforms (7 ECG, 1 SPO2 and 1 RESP) Sweep speed:6.25mm/s, 12.5mm/s,25mm/s,50mm/s	Indicator	Power/battery indicator light QRS beep and alarm sound
Battery	Rechargeable lithium battery, 12v/4AH Max.24 hour for charging, 2 hours for continue working	Recording type	NIBP: 1000 groups Alarm: 200 groups SD card external storage(optional)
Storage	Connected to central monitoring system TCP/IP netting platform Wifi connector (optional)	Alarm	User-adjustable High, Medium and Low limits 3-level Audible and visual alarm
Trend	Parameter graphic and tabular trends: 5s/piece, 8 hours; 1min/piece,168 hours(24hour×7days) 5min/piece, 1000 hours	Networking	Frozen waveform record NIBP recall record Trend table record Alarm record Fixed -time record
