Touch Screen Multipara Monitor , Tabletop Type Patient Monitoring Equipment

Home Products Ultrasound Scanner (Animal)

Touch Screen Multipara Monitor , Tabletop Type Patient Monitoring Equipment

Product Details:

Place of Origin:	China
Brand Name:	RONSEDA
Certification:	CE and ISO
Model Number:	RSD 5000B

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Usd 600 / Set
Packaging Details:	Box
Delivery Time:	5-10 Working Days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 Set / Month

Contact Now

Detailed Product Description

Parameter:	SPO2,ECG,NIBP,TEMP,PR,RESP	Screen:	5 Inch TFT Color Screen
Weight:	1.5 KG	Dimension:	15X20X32 CM
Standard:	SpO2 Sensor,ECG Cable,Temperature Probe,NIBP Cuff,NIBP Hose,Power Cable	Optional:	Printer
High Light:	multipara patient monitor , vital sign machine

5 Inch Touch Screen Tabletop Portable Multi-Parameter Patient Monitor

SPO2,ECG,NIBP,TEMP,PR,RESP

P/N:

RSD 5000B

INTRODUCTION:

1. Touch screen,5.0 inch color TFT-LCD, simple for operating, quickly&accurately measure the data;

2. Build-in rechargeable Li-battery, up to 15 hours running time, support AC and DC power;

3. Adjustable audible and visual alarms, and sensor off alarm;

4. Long time monitoring and sleeping monitoring;

5. Easy to carry, suitable for ambulance center.

STORAGE AND REVIEW:

Maximum Data Quantity: 3888 groups

Maximum Trend Time: Continuous 129.6 hours

PRINTER(OPTIONAL):

Type: Thermal micro-printer

Printer Paper: 58 mm thermal paper,Paper roll diameter≤Φ 33mm

Interface: Bluetooth wireless interface

Recording Types: Real-time printing and review data printing

Power Supply:

Rechargeable battery 1700mAh~2000mAh.7.2V.

Charge(discharge) ≧1000times.

Charge time: 2hours
Work Operation/relative humidity:0～55℃/10～80%RH

Storage Operation/relative humidity:–20～60℃/10～90%RH

FEATURES:

12.1 inch color TFT LCD display, 8 waveforms

Rechargeable high-quality Built-in Li-battery

Easy to learn and use with simplified menus and keys

Easy to connect with central monitoring system

Suitable for adult, pediatric and neonate

Supporting large capacity of storage

ST section and cardiac arrhythmia analysis anti-ESU and defibrillator

Display mode: Standard, Large Font, Trend Table, Full lead ECG, Oxy CRG

GENERAL SPECIFICATIONS:

Storage and review data up to 3888groups via Trend Graph and Trend List.

USB and Bluetooth data upload;

Big font screen interface is easy to observe;

Back light can be adjusted;

Free advanced software

ENVIRONMENT:

Temperature

Working:0°C～45°C

Transport and Storage: -25°C～85°C

Humidity

Working:30% ～85 %

Transport and Storage: 30% ～95 % (no condensation)

PARAMETERS:

ECG

Input:3- lead ECG cable, standard AAMI cable connector

Lead Selection:I,II,III

Gain Selection:×1,×2,×4,×8

Sweep Speed: 12.5, 25, and 50 mm/s

Frequency Response: None filter: 0.05～100Hz (-3dB), filter: 0.5～40Hz (-3dB)

Calibration Signal: 1mV square wave

Protection: Against electrosurgical interference and defibrillation

Heart Rate

Measuring Range: 20 bpm～300 bpm

Renew Time: 1 time per beat

Accuracy: ±1 bpm

Alarm Mode: Audible and visual alarm

SpO2

SpO2%

Measuring Range:0%～100%

Resolution:1 %

Accuracy:±2 %(90%～99%), ±3 %(70%～89%),unspecified (0%～69%)

Pulse Rate

Measuring and Alarm Range:20～300bpm

Resolution: 1bpm

Accuracy: ±1bpm

NIBP

Method: Oscillometric

Mode: Manual, Auto, STAT

Measuring Interval in AUTO Mode: 1, 2, 3, 5, 10, 15, 20, 30, 45, 60 (min)

Measuring Period in STAT Mode: 5 min

Cuff Pressure Range:0 mmHg～300mmHg

Pulse Rate Range:30 bpm～250bpm

Measurement Rage: Adult 30 mmHg～255mmHg, Pediatric 30 mmHg～160mmHg

Over-pressure Protection: Adult 300mmHg, Pediatric 220mmHg

Pressure Resolution : 1mmHg

The SYSTOLIC and DIASTOLIC values measured using this device shall be equal to those measured by trained medical personnel using cuff and stethoscope. The MEAN value measured using this device is equal to that measured using blood pressure measurement device.

Temperature

Input: Body surface thermal-sensitive resistor temperature sensor

Measuring Range: 0℃～50℃

Accuracy: ±0.1℃

WARRANTY:

One years after receiving item.

PICTURES:

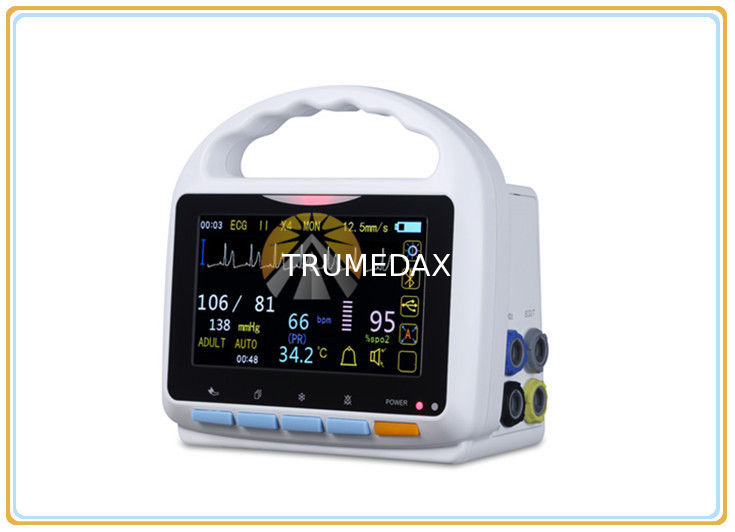

Touch Screen Multipara Monitor , Tabletop Type Patient Monitoring Equipment
