| Place of Origin: | China |
| Brand Name: | RONSEDA |
| Certification: | ISO |
| Model Number: | RSD 810 SA |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Usd 550 / Set |
| Packaging Details: | Box |
| Delivery Time: | 5-10 Working Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Set / Month |
| Type: | Syringe Pump | KVO Speed: | 0.1~5ml/h (0.1ml/h Step) |
|---|---|---|---|
| Weight: | 2.2 KG | Dimension: | 28X21X13CM |
| Fuse:: | T2AH/250V, 2pcs Installed | Operating Atmospheric Pressure: | :86.0kPa~106.0kPa |
| High Light: | medical syringe pump,medication infusion pumps |
||

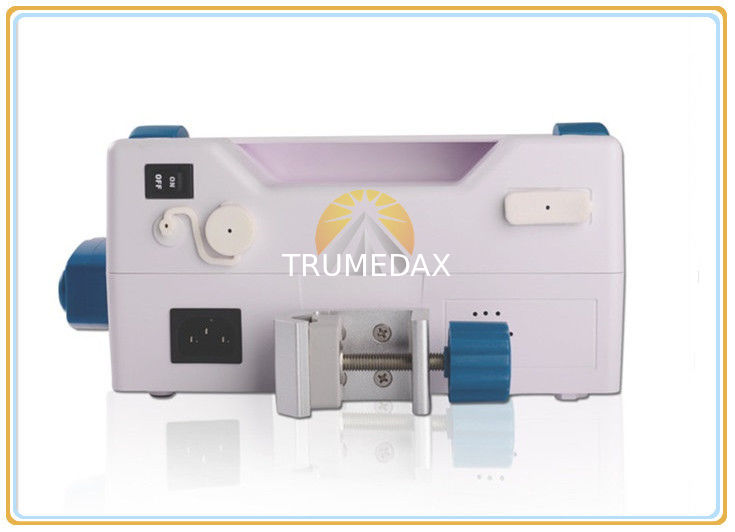

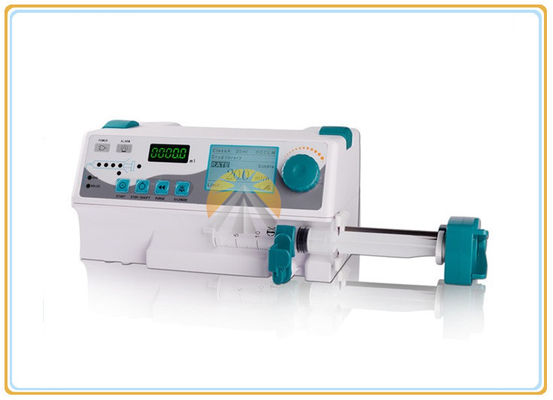

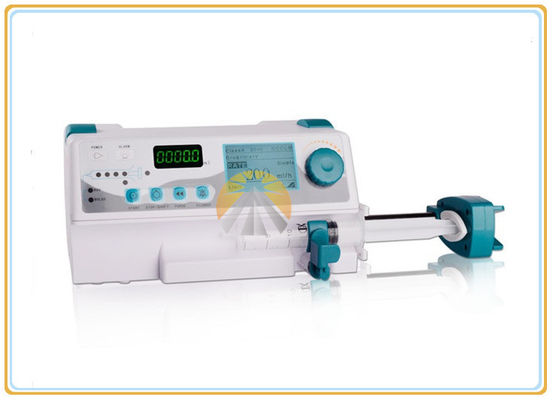

Single Channel Syringe Pump

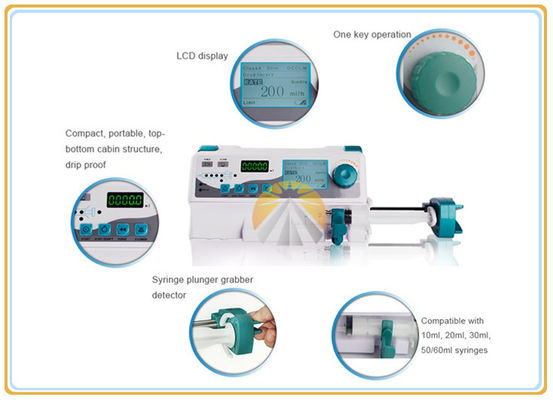

FEATURES:
1. HD LCD Display, high capacity words, friendly user interface, dynamically display working status;
2. Audible and visual alarm for occlusion, empty, near empty, low battery, end of infusion, syringe loose, wrong setting, etc.;
3. Compatible with 5ml, 10ml, 20ml, 30ml, 50/60ml syringe of any brands;
4. Preset solution volume to greatly reduce the workload of nurses;
5. Three working modes: Rate mode, Time Volume mode, Dosage Weight mode;
6. Three levels of occlusion: high, medium and low;
7. Purge and Bolus function;
8. KVO (keep-vein-open) automatically opens as injection is completed, KVO rate is 0.1-5ml/h(0.1ml/h step);
9. Freely Stackable: freely stack one syringe pump onto another to provide multiple solutions, which have a wide range of clinical applications;
10. Power Source: AC100---240V, 50/60Hz; Internal Battery, DC12V car charge;
11. One-key operation makes setup easy and simple;
12. Syringe plunger grabble detector, operable with one hand in a No-Germ Environment;
13. Automatically record the settings of last injection
P/N:
RSD 810 SA
| Model | RSD 810 SA |
|
Injection Rate
|
50/60ml Syringe: 0.1ml/h~1500ml/h (0.1ml/h step) |
| 30ml Syringe: 0.1ml/h~900.0ml/h (0.1ml/h step) | |
| 20ml Syringe: 0.1ml/h---600ml/h (0.1ml/h step) | |
| 10ml Syringe: 0.1ml/h---300ml/h (0.1ml/h step) | |
| Rate Accuracy | Within±3% (after correct calibration) |
| Mechanical Accuracy | Within±2% |
| Maximum Stackable | 8pcs |
|
Purge Rate
|
50(60)ml Syringe: 1500ml/h |
| 30ml Syringe: 900ml/h | |
| 20ml Syringe: 600ml/h | |
| 10ml Syringe: 300ml/h | |
|
Bolus Rate
|
50(60)ml Syringe: 1200ml/h |
| 30ml Syringe: 720ml/h | |
| 20ml Syringe: 480ml/h | |
| 10ml Syringe: 240ml/h | |
| Volume Limit | 0.1ml---9999.9ml (0.1ml step) |
| Total Injection | 0.1ml---9999.9ml (0.1ml step) |
| Maximum infusion pressure | 150kPa |
| KVO Speed | 0.1~5ml/h (0.1ml/h step) |
|
Occlusion
|
High 800mmHg±200mmHg (106.7kPa±26.7kPa) |
| Medium 500mmHg±100mmHg (66.7kPa±13.3kPa) | |
| Low 300mmHg±100mmHg (40.7kPa±13.3kPa) | |
| Transport & Storage Condition | a) Ambient temperature: -20℃~+55℃ |
| b) Relative Humidity: ≤95% | |
| c) Atmospheric pressure: 50.0kPa~106.0kPa |
WARRANTY:
One years after receiving item.
