High Flexibility Mainstream Etco2 Sensor 0.5KG Light Weight CE Approval

Product Details:

Place of Origin:	China
Brand Name:	RONSEDA
Certification:	CE and ISO
Model Number:	RSD BA210

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Usd 480 / Set
Packaging Details:	Box
Delivery Time:	5-10 Working Days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 Set / Month

Contact Now

Detailed Product Description

Name:	Mainstream CO2 Sensor	Weight:	0.5KG
Dimension:	15X20X15 CM	Parameter:	EtCO2
Data Interface:	RS232 , Bi-directional, 19200 Baud Rate, Standard N-8-1
High Light:	ambulance patient monitor , vital sign machine

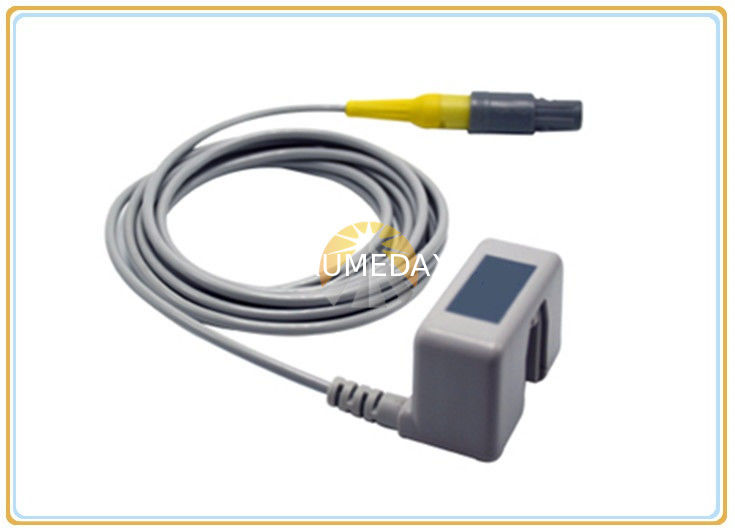

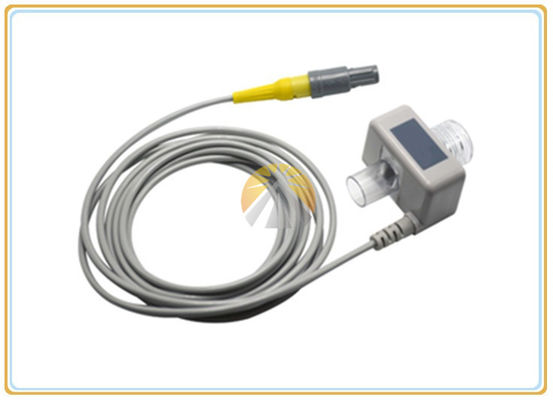

Mainstream EtCO2 Sensor

NAME:

Mainstream EtCO2 Sensor

P/N:

RSD BA210

INTRODUCTION:

The BA210 Sensor is a highly integrated mainstream CO2 Sensor which developed by RSD medical, who had tens of years IR measurement instrument development experience. It’s the one-step capnography solution for patient monitoring system. Within a very compact size, it provides measurement of End-Tidal Carbon Dioxide(ETCO2), respiration rate, capnogram, which can cover most of requirement from the patient monitoring system. With a very simple RS232 interface and industry compatible protocol, it’s fairly easy to connect BA210 to any patient monitoring system and other medical treatment system where CO2 sensor is needed.

With the stability, flexibility and easy to use as the built in essence, BA210 is your ideal choice for your capnography subsystem.

SPECIFICATIONS:

Transducer Type	Mainstream CO2 Sensor
Principle of Operation	Non-dispersive infrared(NDIR), dual wavelength, no moving parts
Initialization Time	Capnogram displayed in less than 5 seconds,full specifications within 2 minutes
CO2 Measurement Range	0 – 114 mmHg, 0 – 15 %, 0 – 15.2 kPa(760mmHg)
Rise Time	Less than 60 ms - Adult Reusable or Single-Patient-Use Airway Adapter Less than 60 ms - Infant Reusable or Single-Patient-Use Airway Adapter
CO2 Resolution	0.1mmHg 0 to 59 mmHg 0.25 mmHg 60 to 114mmHg
CO2 Accuracy	0 – 40mmHg ±2 mmHg 41 – 76 mmHg ±5% of reading 77 – 114 mmHg ±8% of reading Above 80 BPM ±12% of reading
CO2 Stability	Short term drift: Drift over four hours shall not exceed 1 mmHg maximum Long term drift: Accuracy specification will be maintained over a 120-hour period
Sampling Frequency	100 Hz
Respiration Rate Range	2 to 150 Breaths Per Minute (BPM)
Respiration Rate Accuracy	±1 breath
Compensations (Supplied)	Barometric pressure: 400 mmHg to 800 mmHg Operator selectable O2, N2O, He and agent compensation
Calibration	No routine user calibration required. An airway adapter zero is required when changing

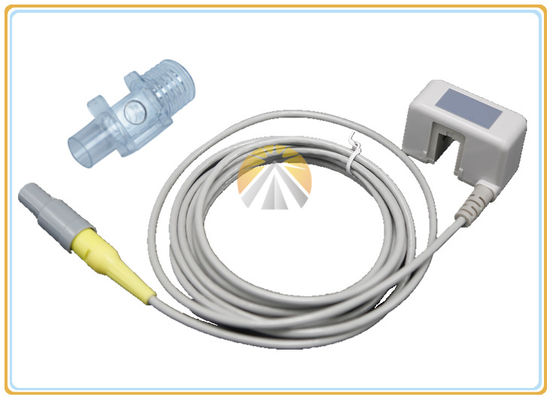

Airway Adapters	Single-patient-use or reusable, < 5 cc dead space (adult), < 1 cc dead space infant
Voltage Requirements	5.0 VDC ±5%
Power Consumption	1.2Watts typical (Steady State) Up to 1.8 Watts maximum on power up (Warm up)
Interconnection (The RS232 connector version is also provided)	Standard - Lemo Redel 8-pin plastic connector Pin out: 1. VA 5.0VDC 2. Shield Shield 3. DGND Digital return 4. VSRC 5.0VDC 5. TxD Serial data from Sensor 6. RxD Serial data from Host 7. AGND Analog return 8. SYNC Unused
Data Interface	RS232 , bi-directional, 19200 baud rate, standard N-8-1.
Data Output	CO2 gas concentration(mmHg), End-tidal CO2, Inspired CO2, Respiratory Rate. Gas and barometric pressure compensated when supplied by host.
Temperature and Humidity	Operating: 0 to 45℃, 10 to 90% RH, non-condensing Storage: -40 to 70℃, <90% RH, non-condensing
Water Resistance	IPX4 – Splash-proof (sensor head only)
