| Place of Origin: | China |
| Brand Name: | RONSEDA |
| Certification: | CE and ISO |
| Model Number: | RSD 7000 Plus V |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Usd 850 / Set |
| Packaging Details: | Box |
| Delivery Time: | 5-10 Working Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Set / Month |
| Parameter: | SPO2,ECG,NIBP,TEMP,PR,RESP | Screen: | 12.1 Inch TFT Color Screen |
|---|---|---|---|
| Weight: | 2.8 KG | Dimension: | 15X42X32 CM |
| Standard: | SpO2 Sensor,ECG Cable,Temperature Probe,NIBP Cuff,NIBP Hose,Power Cable | Optional: | Touch Screen,EtCO2,IBP,Printer |
| High Light: | veterinary vital signs monitor,veterinary monitoring equipment |
||
NAME:

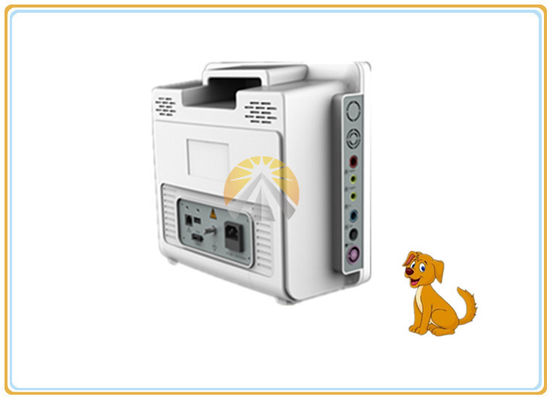

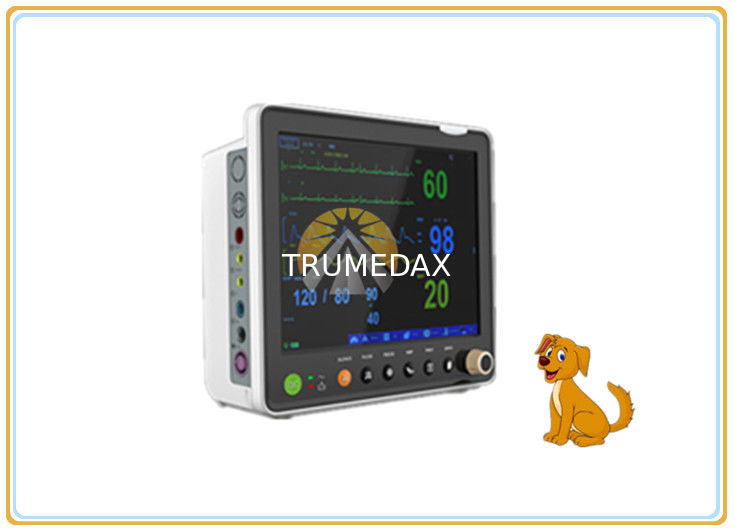

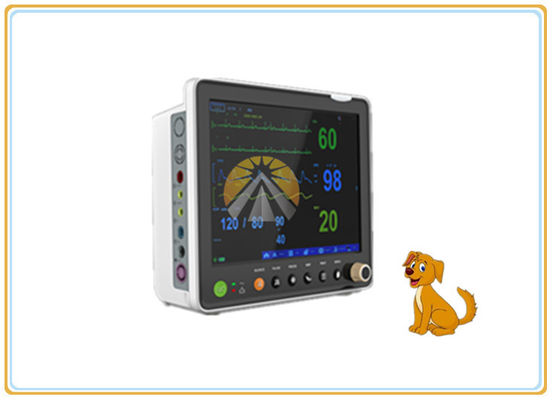

Veterinary Multi Parameter Patient Monitor 12.1 Inch Screen
6 Parameters Vital Signs Monitoring Devices Animal Use
P/N:
RSD 7000 Plus V
INTRODUCTION:
This equipment can monitor such parameters as ECG,RESP,SpO2,NIBP,and TEMP.
It integrates parameter measuring module, display and recorder in one device to form a compact and portable device. At the same time, its built-in replaceable battery provides convenience for patient moving.
|
ECG
Lead mode: 3 Leads or 5 Leads
Lead selection: I,II,III,AVR,AVL,AVF,V
Gain:X0.25,X0.5,X1,X2
Heart Rate:15-300BPM(Adult) 15-300BPM(Neonatal)
Resolution:1 BPM
Accuracy:±1%
ST measurement Range: -2.0+2.0mV
Accuracy:±10%
Pacemaker: Yes
Sweep Speed:12.5 mm/s,25mm/s,50mm/s
Bandwidth:Diagnostic:0.05--130Hz
Monitor: 0.5--40Hz
Surgery: 1-20Hz
NIBP
Work mode: Manual, Automatic, STAT
Measure Range:
Adult: SYS: 40-270mmHg
DIA: 10-215mmHg
MEAN:20-235mmHg
Pediatric:
SYS:40-200mmHg
DIA: 10-150mmHg
MEAN:20-165mmHg
Neonatal:
SYS:40-135mmHg
DIA:10-100mmHg
MEAN:20-110mmHg
Resolution:1mmHg
Measurement Type :SYS,DIA,MEAN
|
SpO2
Measure Range:0-100%
Resolution:1%
Accuracy:2%(70-100%),,0-69%,upspecified
Pulse Rate:20-254BPM
Resolution:1BPM
Accuracy:±3BPM
RESP
Measure Range:0-150RPM
Resolution:1BrPM
Accuracy:±2%
TEMP
Measure Range:0-50C
Resolution:0.1C
Accuracy:±0.1C
Power Requirements:
Voltage: 13-20V DC
Power Consumption: 8 watts, typical
Battery: 1 sealed Li-battery
Battery Life: 5 hours, typical
Recharge Time: 2.5 hours, typical
Environment:
Operating Temperature: 59°to 95°F(15°to 35°C)
Storage Temperature: 23°to 122°F(-5°to 50°C)
Operating Humidity: 15℅ to 90℅,non-condensing
|
FEATURES:
WARRANTY:
One years after receiving item.
